What is a Fact Concept?

Fact concept is an abstract model that defines the fundamentals of knowledge in a specific context. Facts describe what business people know about their business. A Fact has certain characteristics: structure, relationships, and constraints. The Fact Concept visually describes these characteristics. When Fact Concept is modeled, it defines:

  1. The context of a business domain
  2. Bases of the business glossary (terms) and associated expressions
  3. Constraints about Facts, structurally and semantically
  4. Relationships of the Facts within a business context

Modeling

There are three major elements in a Fact.

Fact

A fact is a logical grouping of data and/or information that represents a concept. In this example, Person is the fact which has three members FirstName, LastName, and Occupation.

Option

A list of valid pre-defined values for a member of a Fact. In this example, it’s the occupation which has a list of options.

Relationship

A relationship defines the whole-part relationship between Facts and Options. It can define one-to-one, one-to-many and many-to-one relationships.

Fact Concept

To add a new Fact Concept document,

Document Types --> Business Concept --> Fact Concept

Once you add facts and options, this will be the window.

Fact Concept Properties

  1. Node Type: Type of the document which is ‘Concept’
  2. Namespace: Namespace is a name that defines the definition. For example, when there are multiple Fact models with the same name, they can co-exist in different Namespaces.
  3. Attribute Type: Type of attributes that can be assigned to this particular item
  4. Description: Any description related to this Fact Concept file
  5. Glossaries: If there are any Business Glossaries or Boxed Expressions, link them here

Toolbox

You can click/ drag and drop items from the toolbox to the canvas.

Common

  1. Selection: Select a node
  2. Note: Create notes

Connections

  1. Straight: Straight connection line
  2. Bezier: Curved connection line
  3. Right Angle: Right angled connection line

Concepts

  1. Fact: Fact node
  2. Option: Option node

Top Menu

At the top menu, you can see the following items.

  1. Delete item: Delete a selected item
  2. Properties: Properties of the page or a node
  3. Edit members: Edit members of a selected node
  4. Overview of entire model: See the entire model
  5. Zooming: Zoom in or zoom out
  6. Export to image: Export the document to an image
  7. Alignments: Align nodes
  8. Resize: Resize selected nodes to a single size
  9. Layout arrangements: Automatically arrange and layout the nodes
  10. Change connections: Change connection styles to straight/ Bezier or Right Angle

Node/ Connection Properties

If you click on a node/ connection, its property window will appear.

  1. Appearance: Change the appearance of the nodes (i.e. colour, font)
  2. Name*: Name of the node
  3. Members*: Collection of members of the node
  4. Metadata: Details about the node

Create a Fact Concept

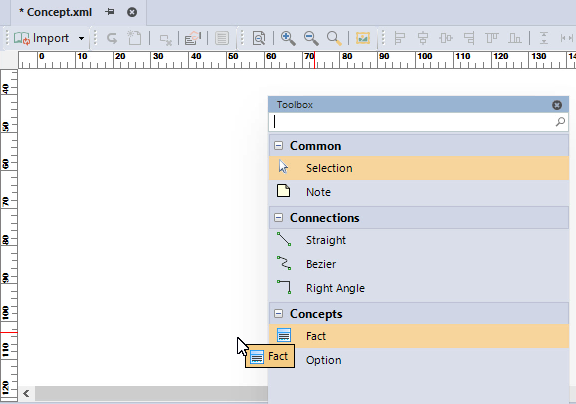

Drap and drop a Fact

Double-click on the name to change the Fact name (This is the type of the variable)

Add properties to the object

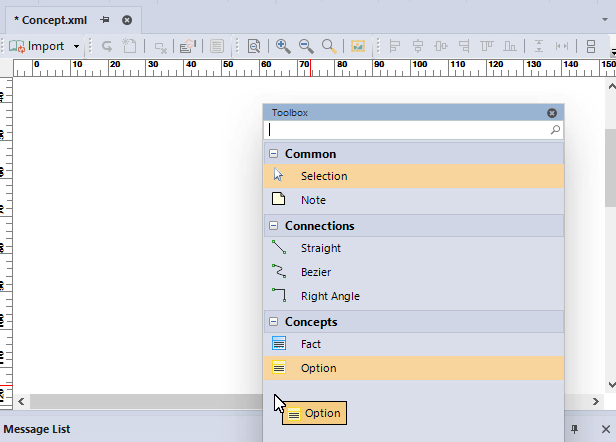

If you want to add options, drag and drop an Option.

Write-click and add options.

Connect the options and the property, you want to add the option by dragging a line from the property to options.

Then the property and the options will be connected.

Change the option name to match with the property.

Finally, the options are added.

Referencing a Fact Concept

A Fact Concept is added to a logic document as a variable with a custom type. See this link to know how to define.

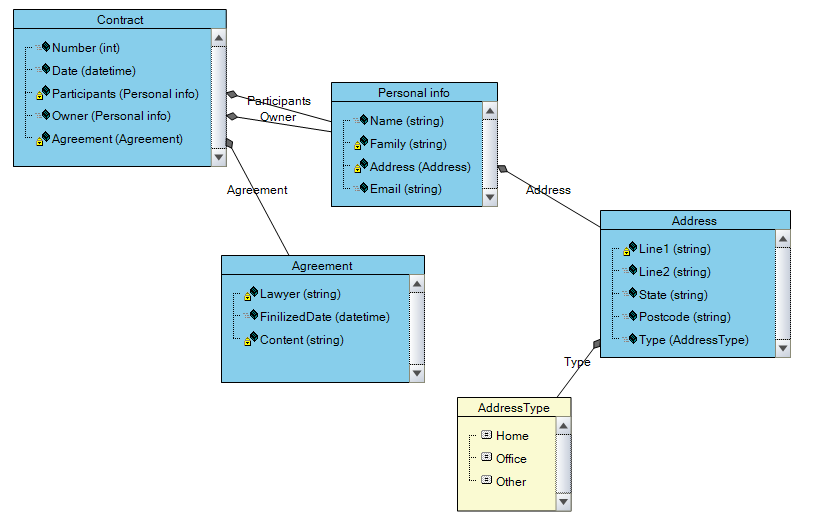

Sample Fact Concept

Download the sample Fact Concept file (FactConcept.zip) using the attachment.

Add both FactConcept.xml and FactConcept.help.xml to your project folder and add FactConcept.xml using Add Document
