Manage Version History

◷ Reading Time: 7 minutes

FlexRule’s built-in source control enables the use of Git as your version controlling system for FlexRule Designer projects.

Add Source Control

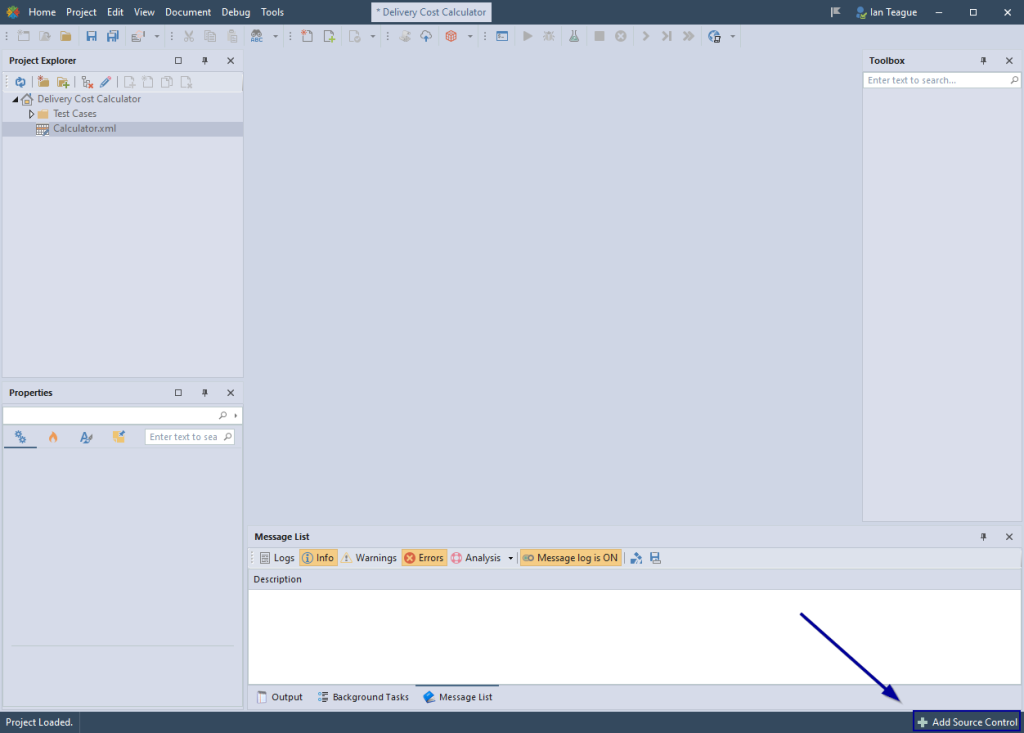

Click on the Add Source Control button at the bottom of the window.

Select Local Git.

Then the Source Control options will be updated showing,

  • Number of commits waiting to be pushed
  • Number of files modified waiting to be committed
  • The current branch you have checked out

Commit Changes

You can compare versions and commit and push changes.

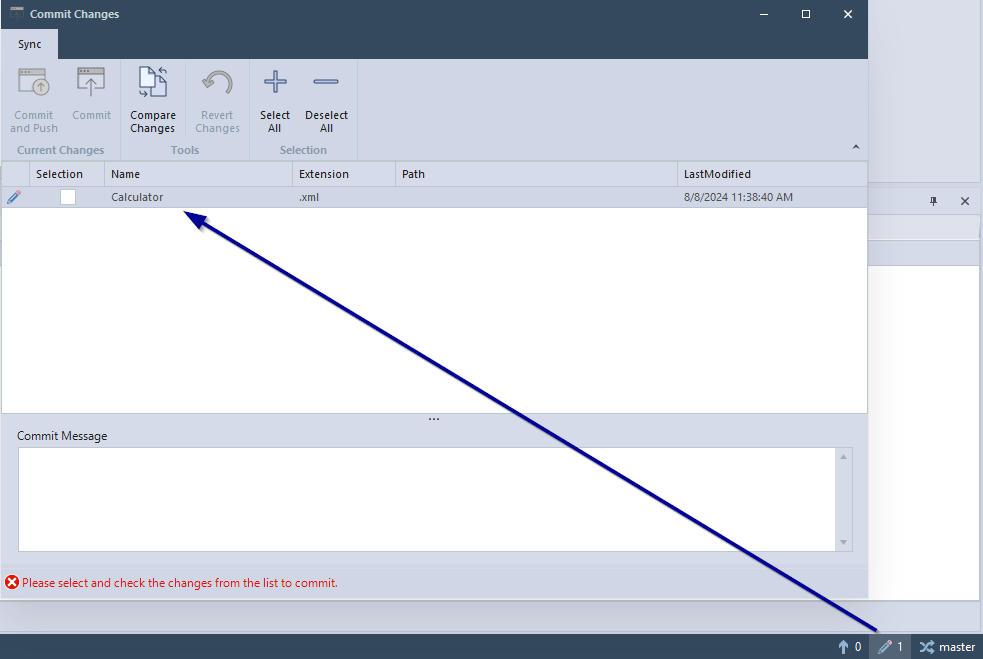

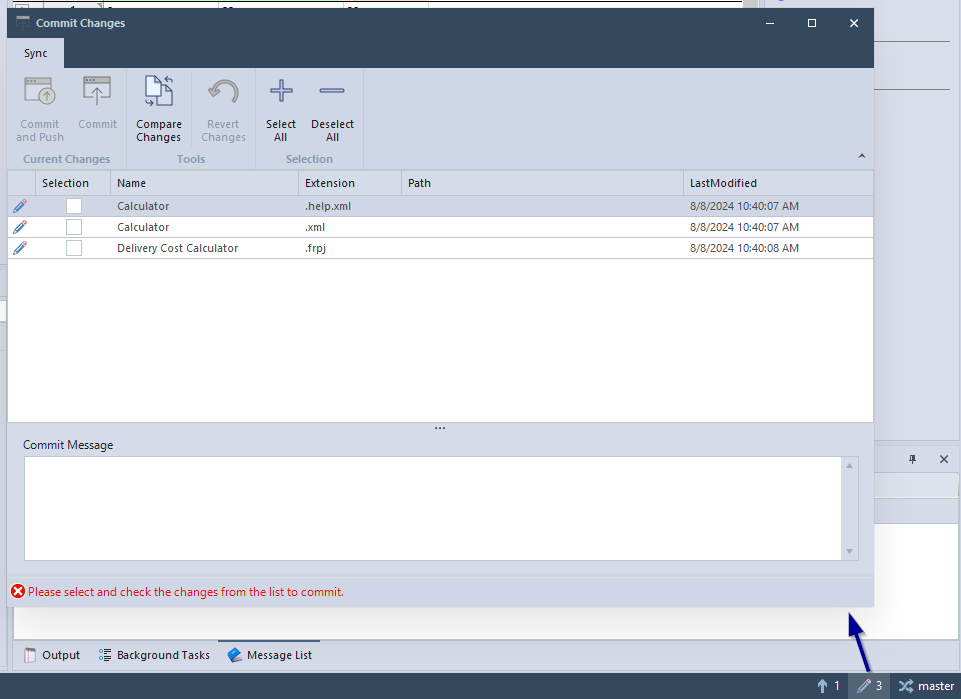

At the bottom of the screen, you can see the number of changed files. Click on that and you will be directed to the window with the list of changed files.

  • Commit and Push: Commit and push changes to the remote repository
  • Commit: Commit changes

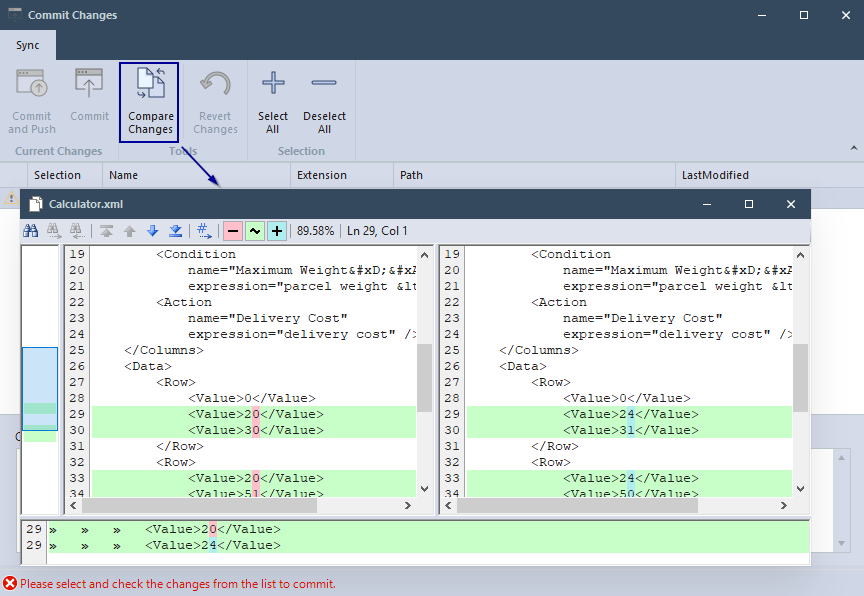

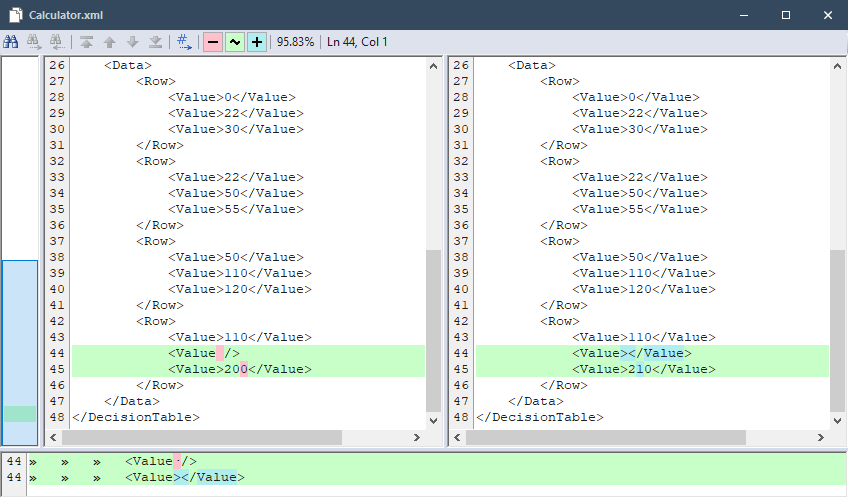

  • Show Changes: Show the changes compared to the previous version
  • Select All: Select all changed files
  • Deselect All: Deselect the selected files
  • Commit Message: Comment to be added to the commit

Manage Repositories

Click on the branch name (in this example, it is master) to see the repository options.

  • Manage Remotes
  • Manage Branches
  • Manage Commits

Manage Remotes

Manage Remotes is used to view and manage remote repositories.

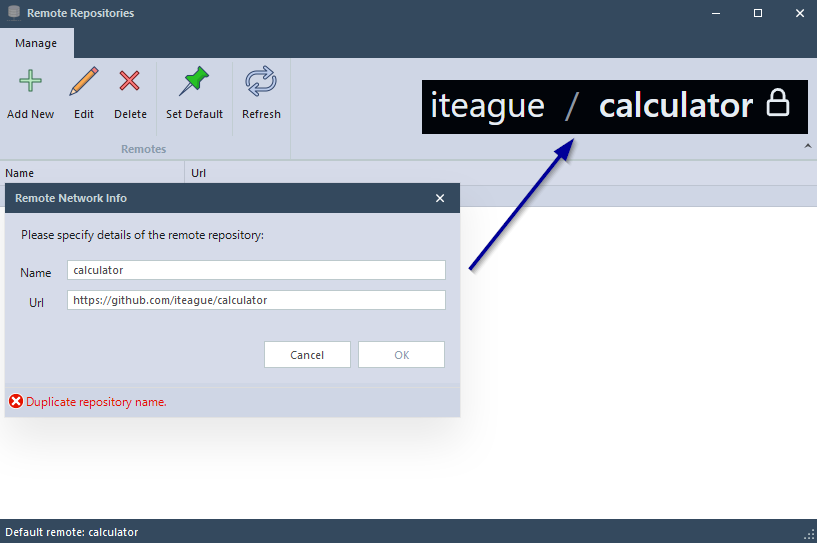

  • Add: Add a remote repository
    • Name: Name of the repository
    • Uri: Full link to the repository
  • Edit: Edit an added remote repository
  • Delete: Delete an added remote repository

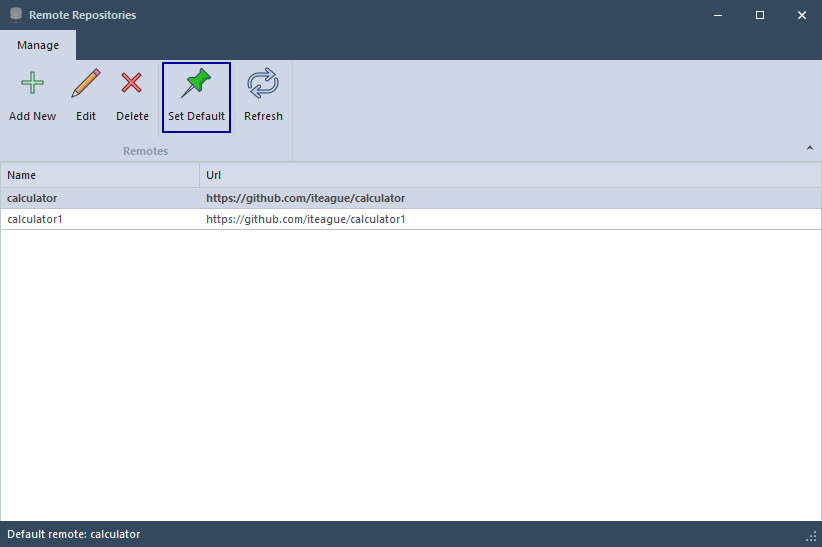

  • Set Default: When you have a list of remote repositories, set one of them as a default repository. It will be shown in bold.
  • Refresh: Refresh the list of repositories

Manage Branches

Manage branches of the repository.

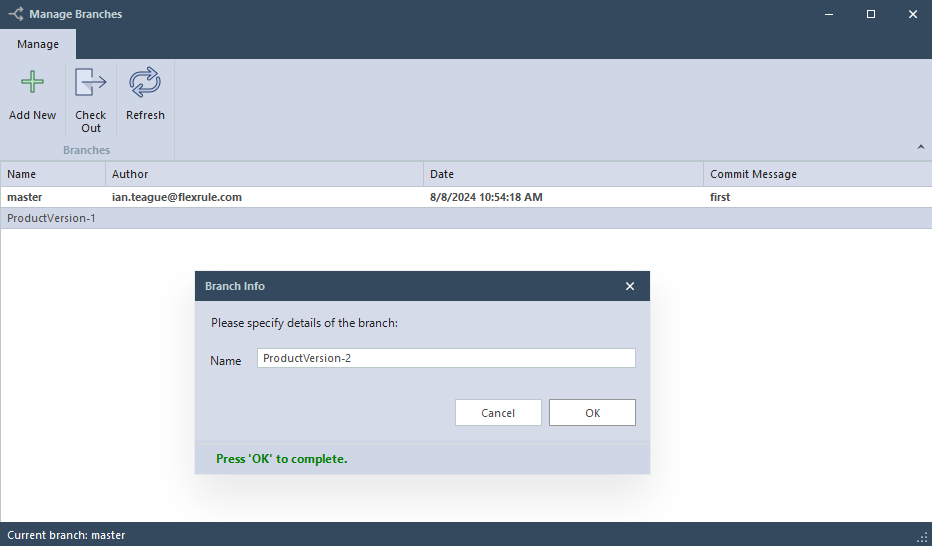

  • Add New: Add a new branch
  • Check Out: Use the selected branch.
    Once you check out a branch you can see which branch you are in


  • Refresh: Refresh the list of branches

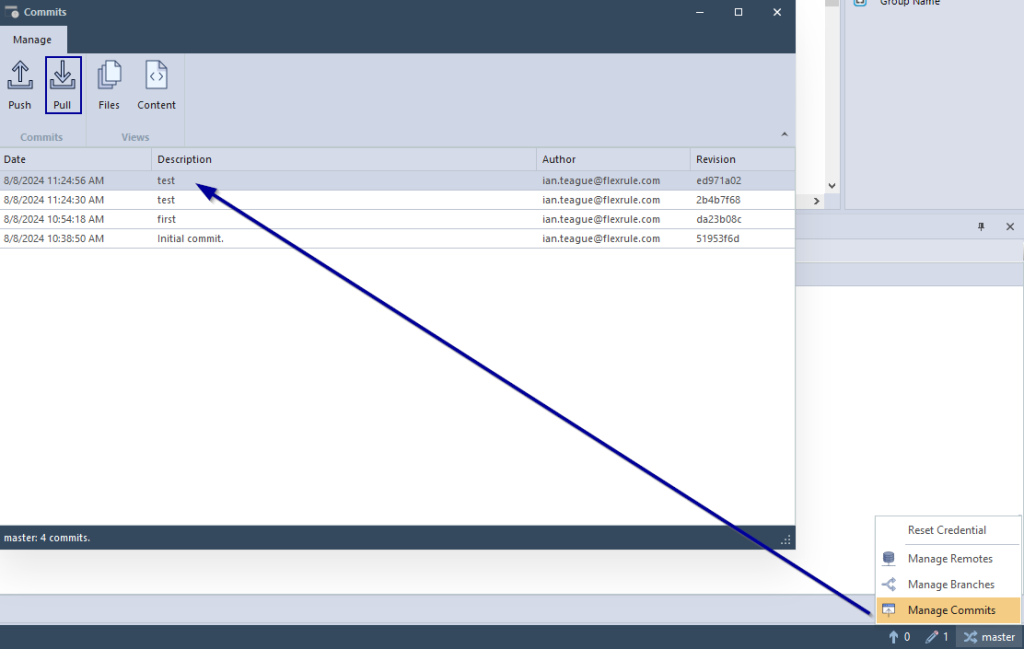

Manage Commits

You can view and manage the commits.

  • Push: Push to the remote repository
  • Pull: Pull from the remote repository

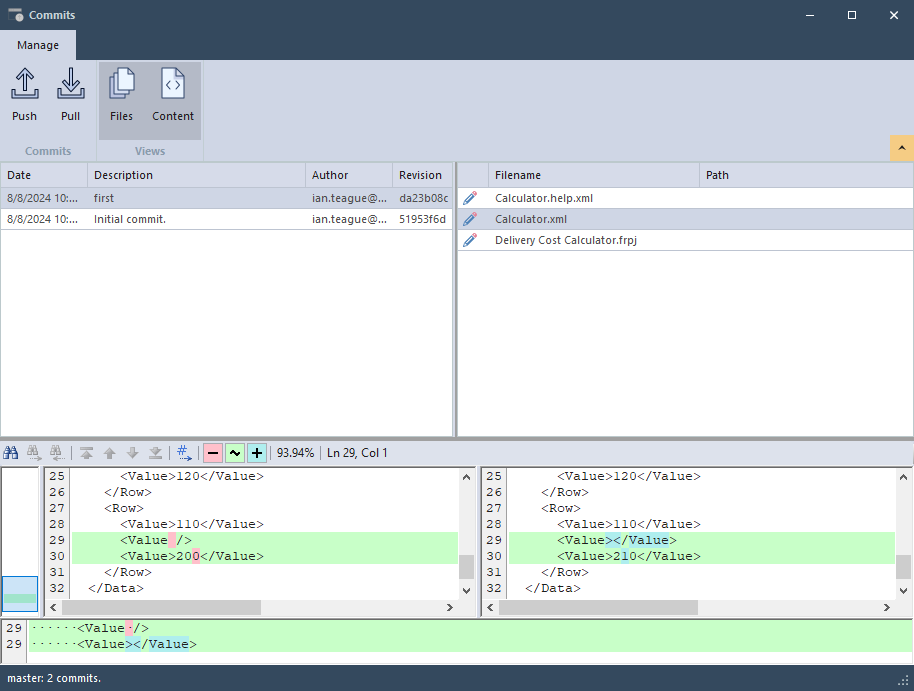

  • FIles: See the changed files of each commit
  • Content: See the file content

Push to Remote Repository

Once you commit changes, you can see the number of commits waiting to be pushed to the remote repository.

Click on the push icon and you can enter the credentials to your Git account. You can use the login or token.

If the branch does not exist, it will create the branch and push.

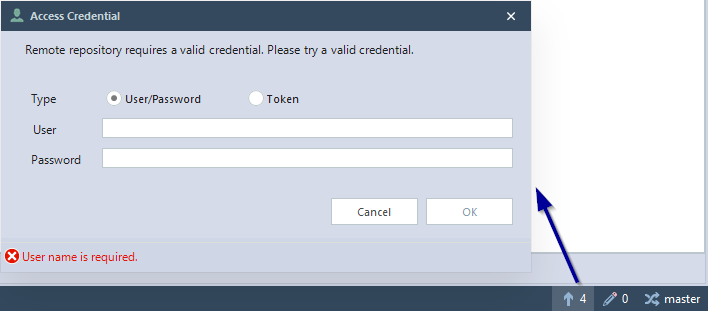

Using username and password

Github only supports access token and no longer supports username/password login.
This page explains how you can create an access token.

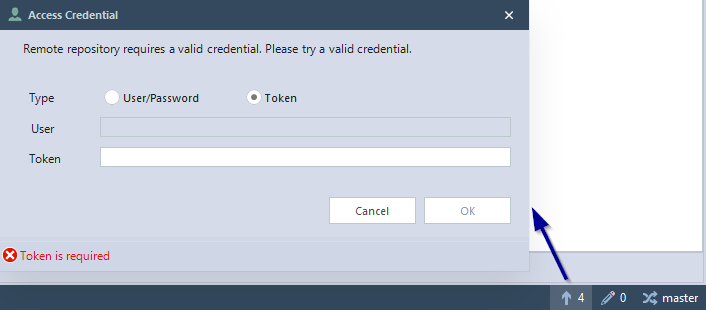

Using Personal access token

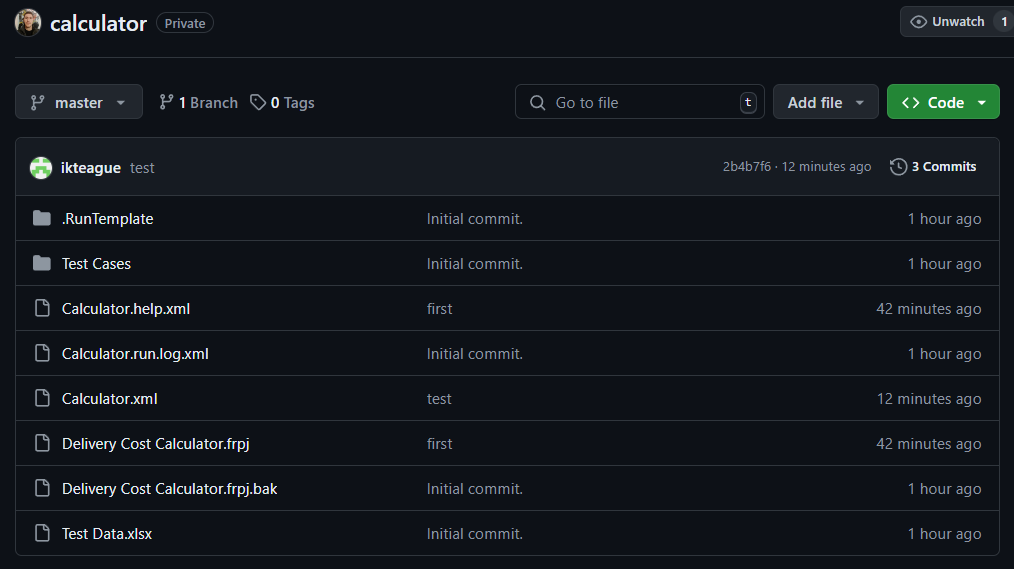

You can see the updated remote repository as follows.

Conflict Resolution

The remote repository and the local repository have different versions of the same files, it identifies the changes and provides options to eliminate the conflict.

In this situation, you should first pull

Then you will see the conflicted file can be seen which is the file you edited in both remotely and locally.

The file content changes can be seen.

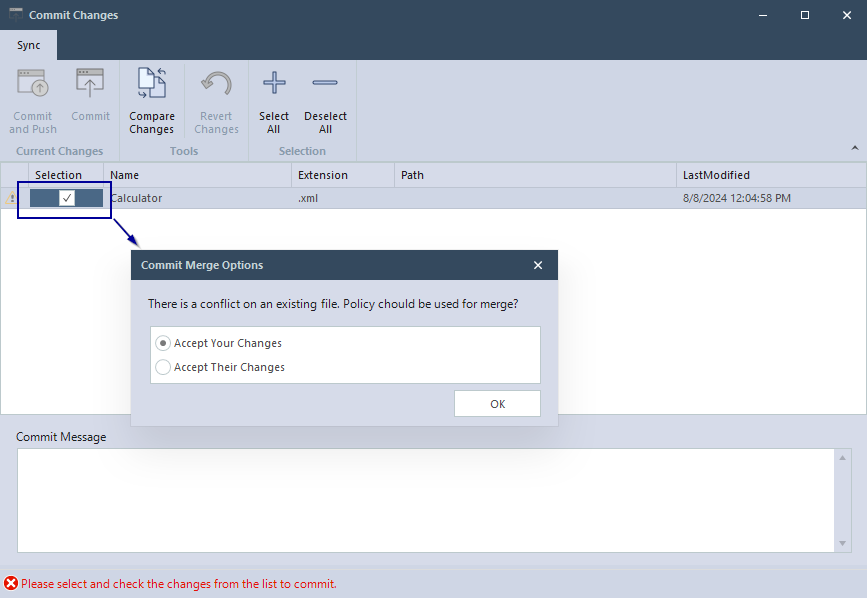

You can decide whether to,

  • Accept local repository changes
  • Accept remote repository changes

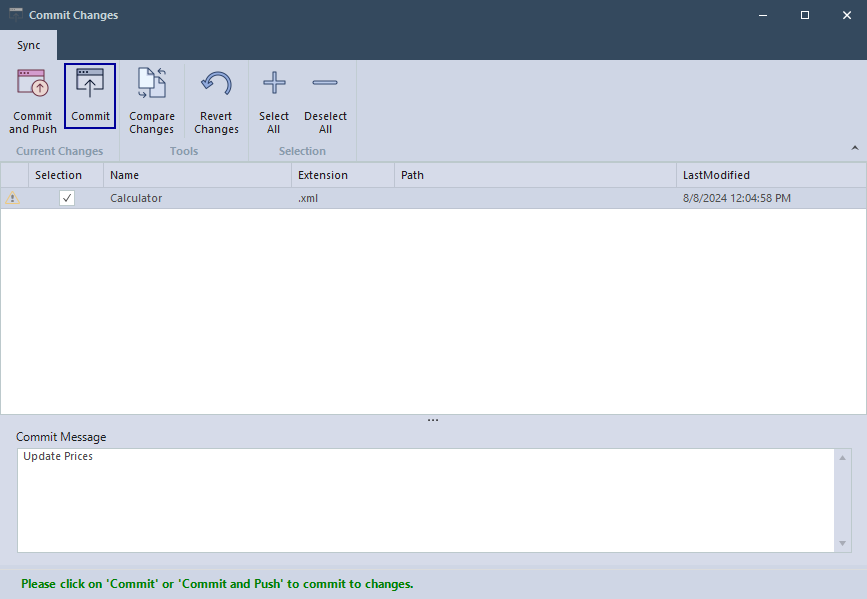

Add a commit message and commit.

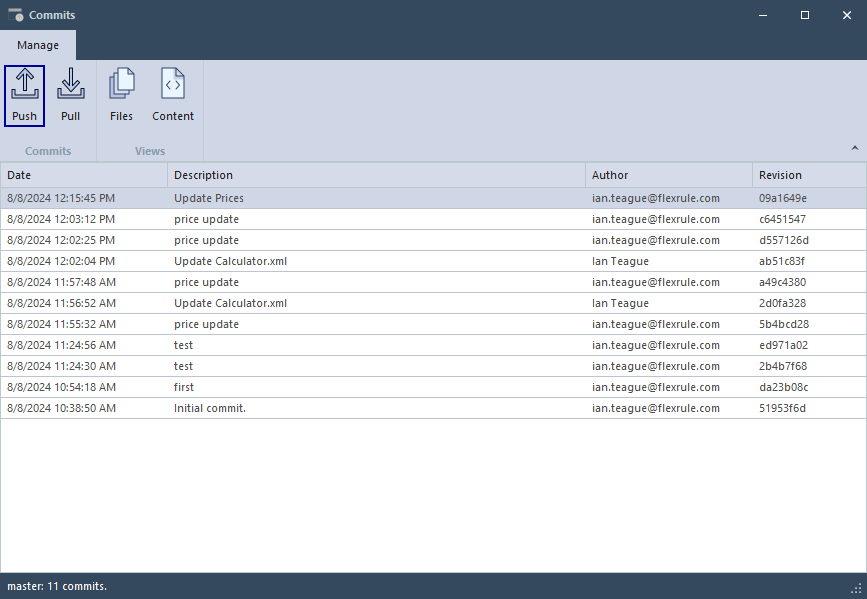

After that, you can push the new commit.

If you refresh the files in Project Explorer, close the conflicted file in the Designer, and open it again, you will see the updated file according to the option you selected.
