AutoML Builder

◷ Reading Time: 7 minutes

The AutoML capability of FlexRule automatically examines different machine learning algorithms, finds the best algorithm, and generates the best model to make a prediction.

It can create the following three types of models.

  • Regression
  • Multiclass Classification
  • Binary Classification

Building the Model

You can find the AutoML Builder under Decision Analytics.

The method for all the builders is the same. Therefore, we will continue the Regression model builder.

Once you install the Analytics extension (FlexRule.Extensions.Analytics), go to,

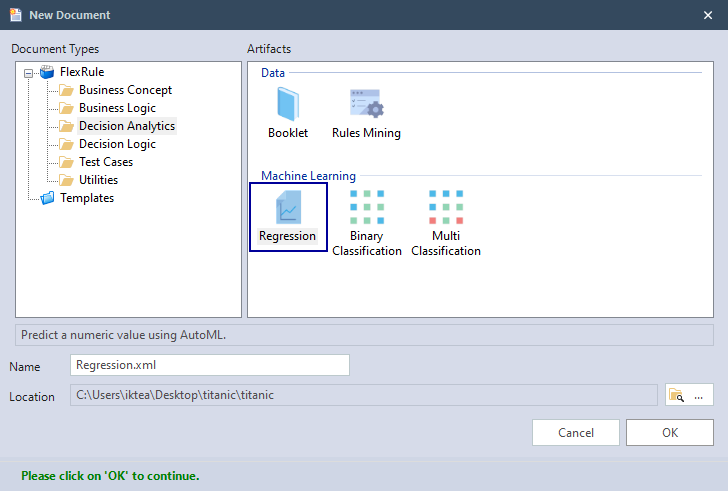

Add New Document --> Decision Analytics --> Regression
Regression in DA

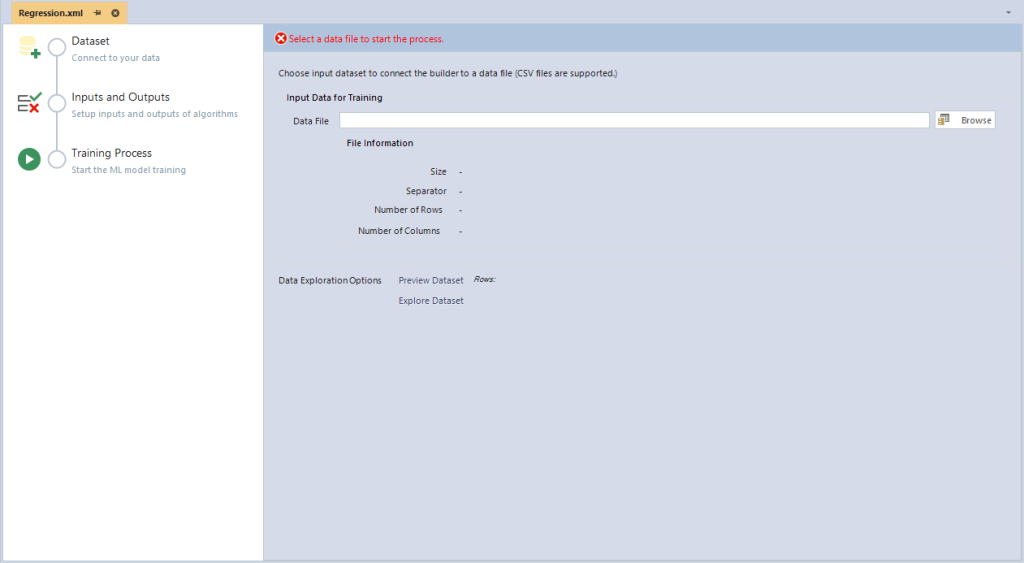

Then it will launch the Regression ML Model Builder.

There are three steps:

  • Dataset: To upload the dataset
  • Input and Outputs: Select the input and prediction columns
  • Training Process: Train the model


In the first step, we will be uploading the dataset to start building the model.

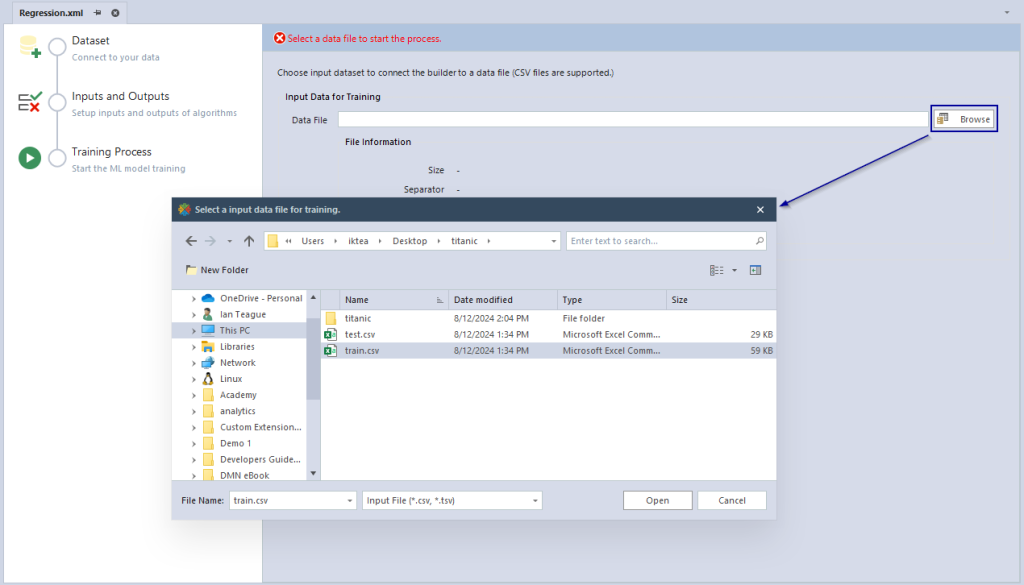

Select the dataset in CSV file type.

The dataset should have a minimum of 100 rows.

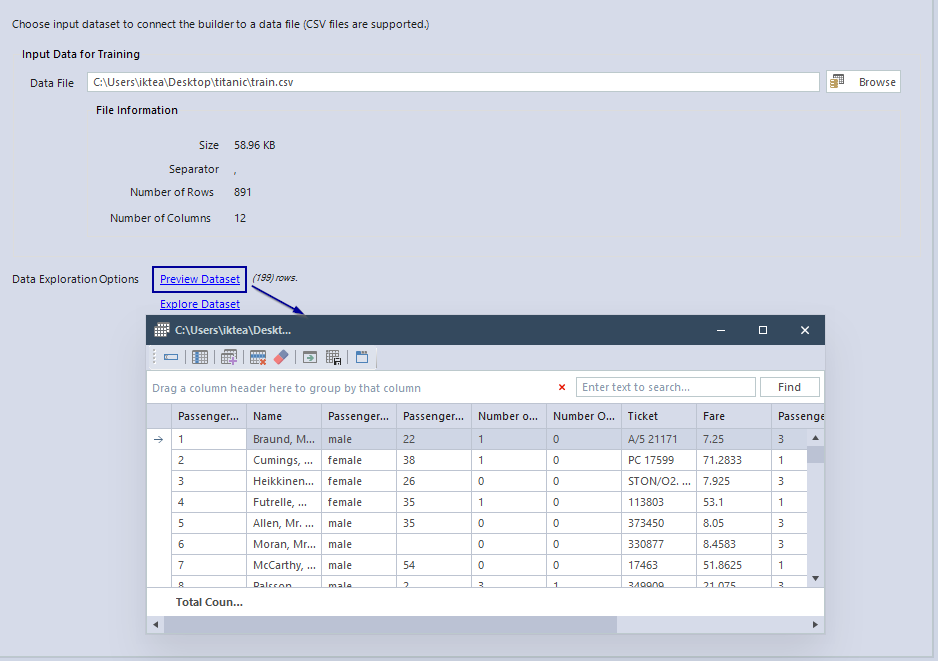

Once the dataset is uploaded successfully, you will see the file information.

  • Size: Size of the uploaded file
  • Separator: Delimiter of the CSV file
  • Number of Rows: The number of rows in the uploaded dataset
  • Number of Columns: Number of columns in the uploaded dataset

You will also have the option to preview the uploaded dataset.

Click Next Step to go to the next step.

Inputs and Outputs

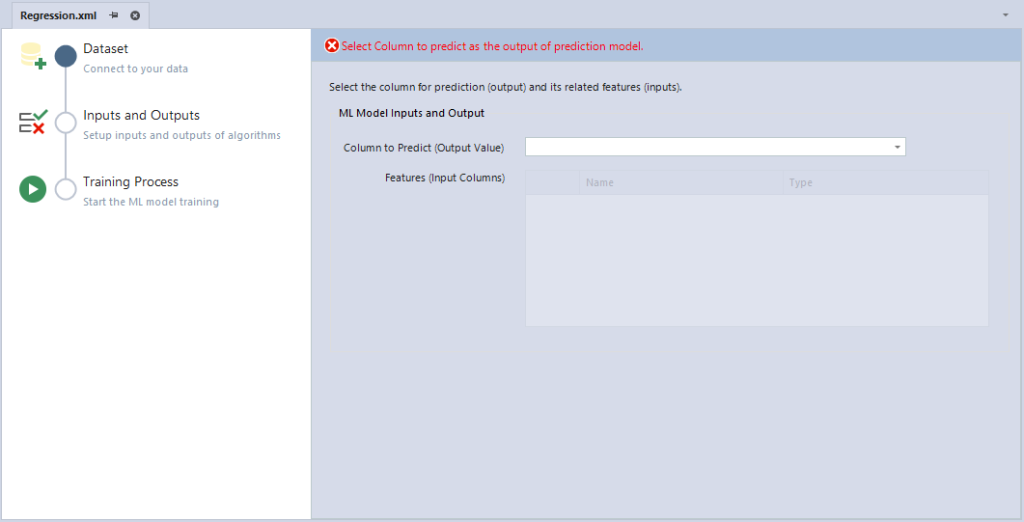

In this step, we will be selecting the inputs and the output column to make predictions.

The input/ output lists are auto-generated from the file uploaded in the previous step.

Select the output column from the drop-down list.

Select the input columns. The prediction of the above-selected output column is determined based on the input columns you select in the step. Therefore, if there are any columns that you don’t need to be used in the prediction, you can un-tick them here.

Click Next Step to go to the next step.

Training Process

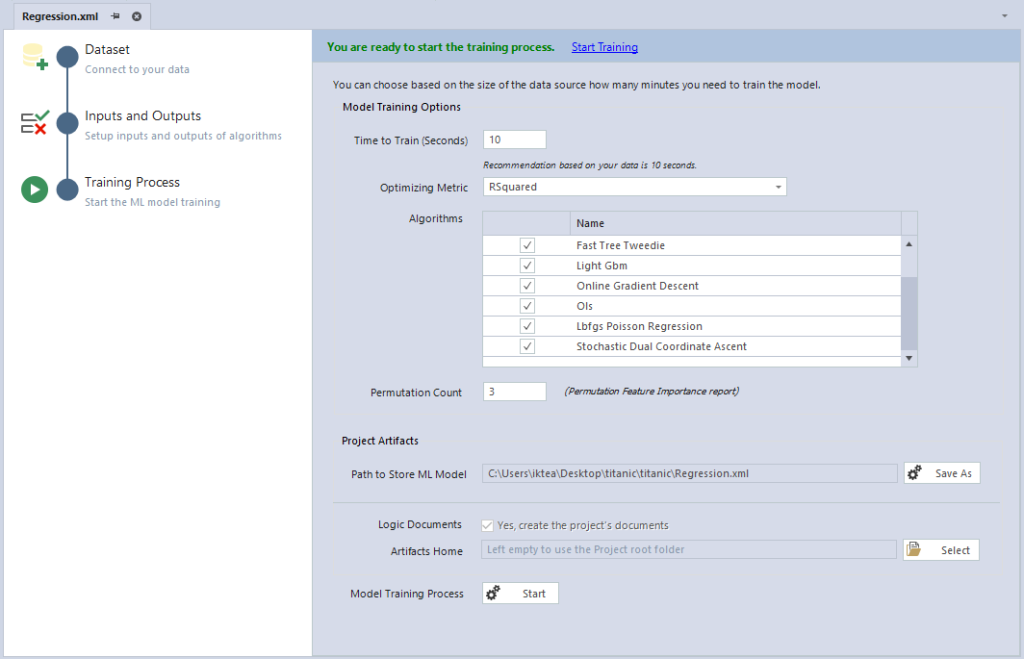

This is the final step that allows you to choose the options for training.

Finally, you can start training the model by clicking on Start.

Once the process starts, you can see the steps in the Background Tasks window.

When the training is completed successfully, you will be able to see the completed steps.

Click on the completed task and click View Task Result.

Then you will see the report of the built model.

Automatically Created Model

You will also see the automatically created files.

These are the files:

  • <CSV file name>.DRD.xml:
    The decision model can be used to test the model and integrate into your project.
  • <CSV file name>.InputOutput.Concept.xml:
    The concept file defines the inputs and output (prediction).
  • <CSV file name>.frm:
    Model Building Report containing details such as the chosen best algorithm, how many algorithms explored, etc.

<CSV file name>.DRD.xml

<CSV file name>. InputOutput.Concept.xml

<CSV file name>.frm

Running the Model

Open the DRD.xml file and click Debug with JSON Composer.


Enter sample data.

The prediction can be seen as the output in the Parameters window.

Video Tutorial

External References:

Updated on March 27, 2023
