Install FlexRule Designer and Runtime

◷ Reading Time: 3 minutes

Welcome to FlexRule Designer. Let us take you through the steps below.

Step 1 – Make sure you are ready for installing FlexRule Designer and Runtime on your machine

1. Register in FlexRule

As the very first step, you need to register on FlexRule (If you have registered already, you can skip this step).

2. Download My Licenses Application

  1. It is mandatory to send an email to support@flexrule.com to add your username to the licensing system.
    This is a one-time process. So if you have already contacted support and added your email to the licensing system, you can skip this step.
  2. Once your username is added to the licensing system, download the licenses using the My Licenses Application.

Step 2 – Download FlexRule Designer installer

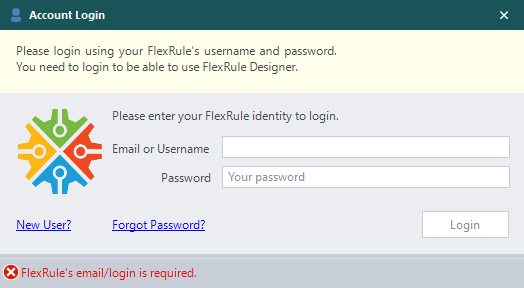

1. Log in to FlexRule with your registered username and password

  1. Go to https://www.flexrule.com/downloads/links and log in using the username and password you used to register on Step 1.1.

2. Provide the download password sent by the FlexRule support team

You must have received the download password from the FlexRule support team (support@flexrule.com). Use that password to go to the download page.

3. Download FlexRule Designer

Download only the FlexRule Designer from the download page.

Step 3 – Install FlexRule Designer and Runtime

1. Install using the installer

  1. You will see the downloaded installer: FlexRuleDesigner<version>Setup.exe
  2. Double-click on that and the Designer will be installed

2. Download FlexRule Runtime

  1. Open installed FlexRule Designer
  2. Download FlexRule Runtime from the pop-up Runtime Downloader and it will be automatically installed.

3. Provide your license files

Browse for the following license files you downloaded on Step 1.2.

  • FlexRule Designer license: Flexrule.Designer.License.lic
  • FlexRule Runtime License: Flexrule.License.lic

Now your FlexRule Designer installation is successful!

Video Tutorial

Updated on June 29, 2020
